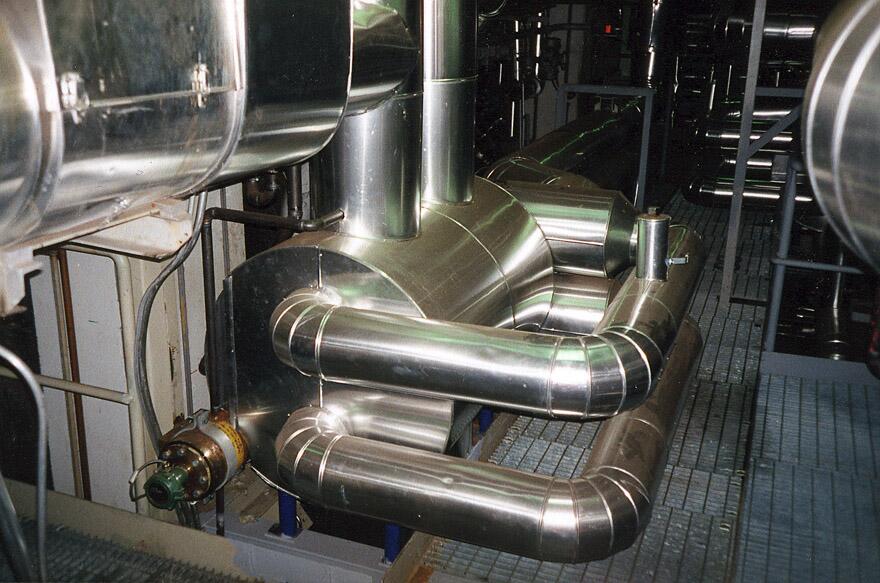

POWER PLANT HEAT NET STEAM TRAP HEATER

Parameters
►Capacity: 23MW
►Condensate @ 32-42bara, 51.2 ºC / 122.2°C
►DH water heater condensate @7.35bara 130ºC / 59°C
►Design pressure: -1 / 45 barg
►Design termperature: 0 / 150ºC
►Dimension (L x W x H with feet): 3900x1200x2100mm
►Dry weight: ~ 11000kg

Advantages
►energy-efficient
►compact structure
►pressure resistance
