HEAT EXCHANGER TYPE X(DOORS)

PARAMETERS
►Heat transfer area:0.1～1500 ㎡
►Design pressure:0～40 bar
►Plate length:330mm~6000mm
►Plate width:110mm~1000mm

ADVANTAGES
►Short plates can reduce installation space
►Both sides can be completely cleaned
►Special design can enhance heat transfer and improve heat transfer efficiency

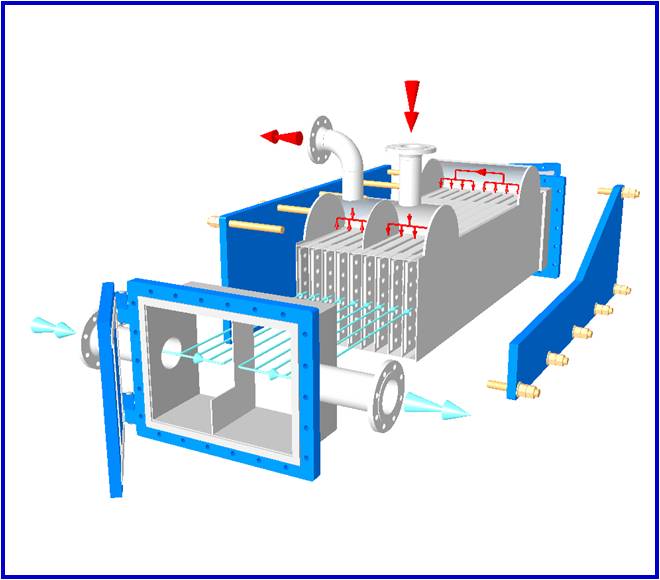

Structure type

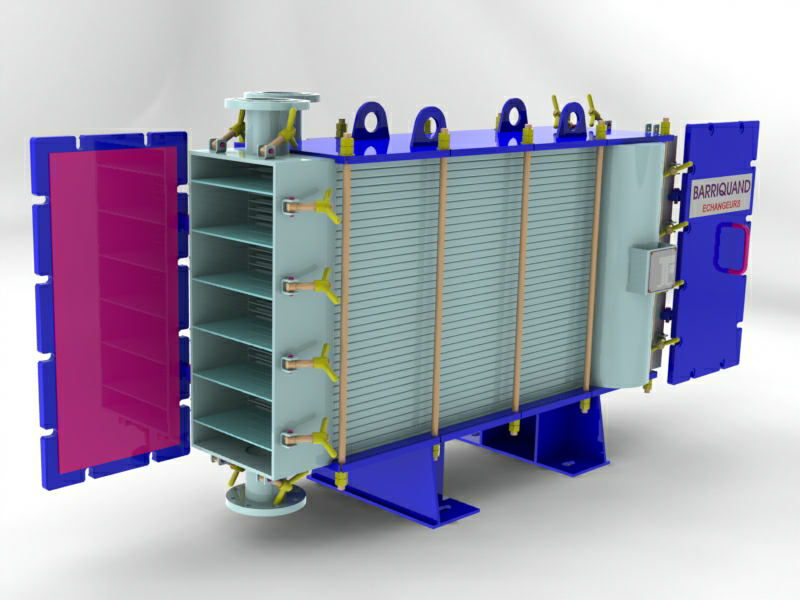

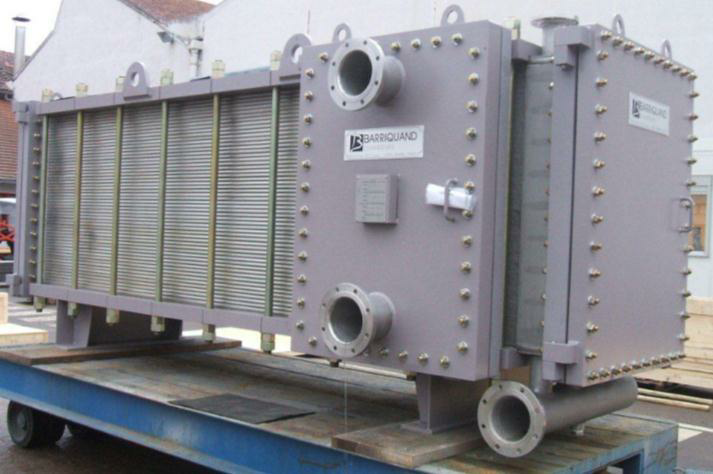

two doors(Easy cleaning on one side)                                                                                        four doors(Easy cleaning on both sides)                                                                                                         Contact us
